4 channel Hi-Level Adapter
CODE: 41103
Manufacturer: ...

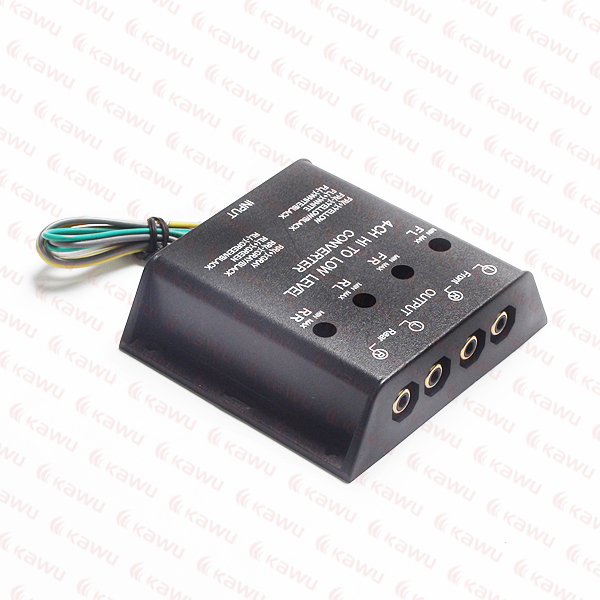

4 channel Hi-Level Adapter
Description
4-channel audio signal converter
The converter guarantees a high quality output signal. Exceptionally durable, resistant to overheating.
(High frequency output = loudspeaker output)
(Low frequency output = amplifier output)
Technical data:
Proportions of transmission from 3.6: 1 V (in) max 14V Suitable for radios with output power: max. 40W (music) per channel 5W (music) min. for one channel
Connection: Input 8 loose wires
Output 4 gold-plated RCA inputs

INSTALLATION:

Set the potentiometer knobs to min.
Connect the wires
- green wire to the left speaker rear +
- green wire to the left speaker back -
- gray cable to the right speaker rear +
- gray cable to the right speaker back -
- white wire to the right speaker front -
- white cable to the right speaker back -
- yellow wire to the right speaker front -
- yellow wire to the right speaker back -
Turn on the radio by supplying the signal and external wires
Adjust the potentiometers to the right signal value.


Description:
